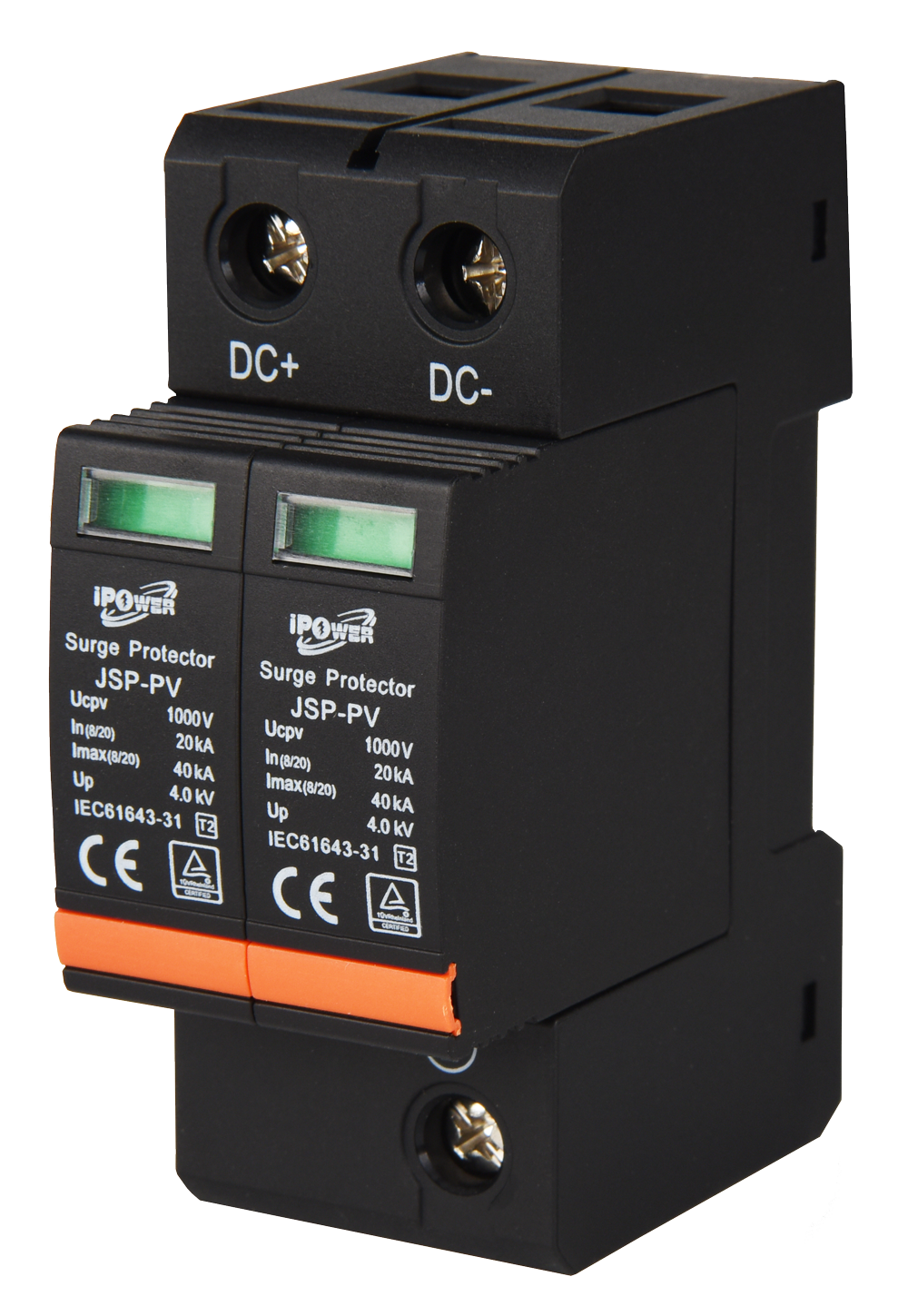

PV SPD SURGE PROTECTIVE DEVICE 2P 1000Vdc High Quality ln:20kA. รุ่น JSP-PV (iPower)

Product Description

Solar 2P DC SPD Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).

These units must be installed in parallel on the dc networks to be protected and provide common

and different modes protection. Its installed location are recommended at both ends of the dc

power supply line (solar panel side and inverter/converter side), especially if the line routing is

external and long.

High energy MOVs equipped with specific thermal disconnectors and related failure indicators.

Product Features

Indicator window is obvious (green is OK, clear indicates failure)

Fully enclosed terminal

The shell is made of PC flame retardant material, fire insulation

Replaceable module
